（Pre-order）Temtop PMS 31 High Precision Remote Particle Counter for High-Purity Monitoring

Product image 1
1 / 5
digital gauge

（Pre-order）Temtop PMS 31 High Precision Remote Particle Counter for High-Purity Monitoring

* Customers outside the USA need to pay taxes on their own.

We will arrange the shipment within 30 working days after your payment.

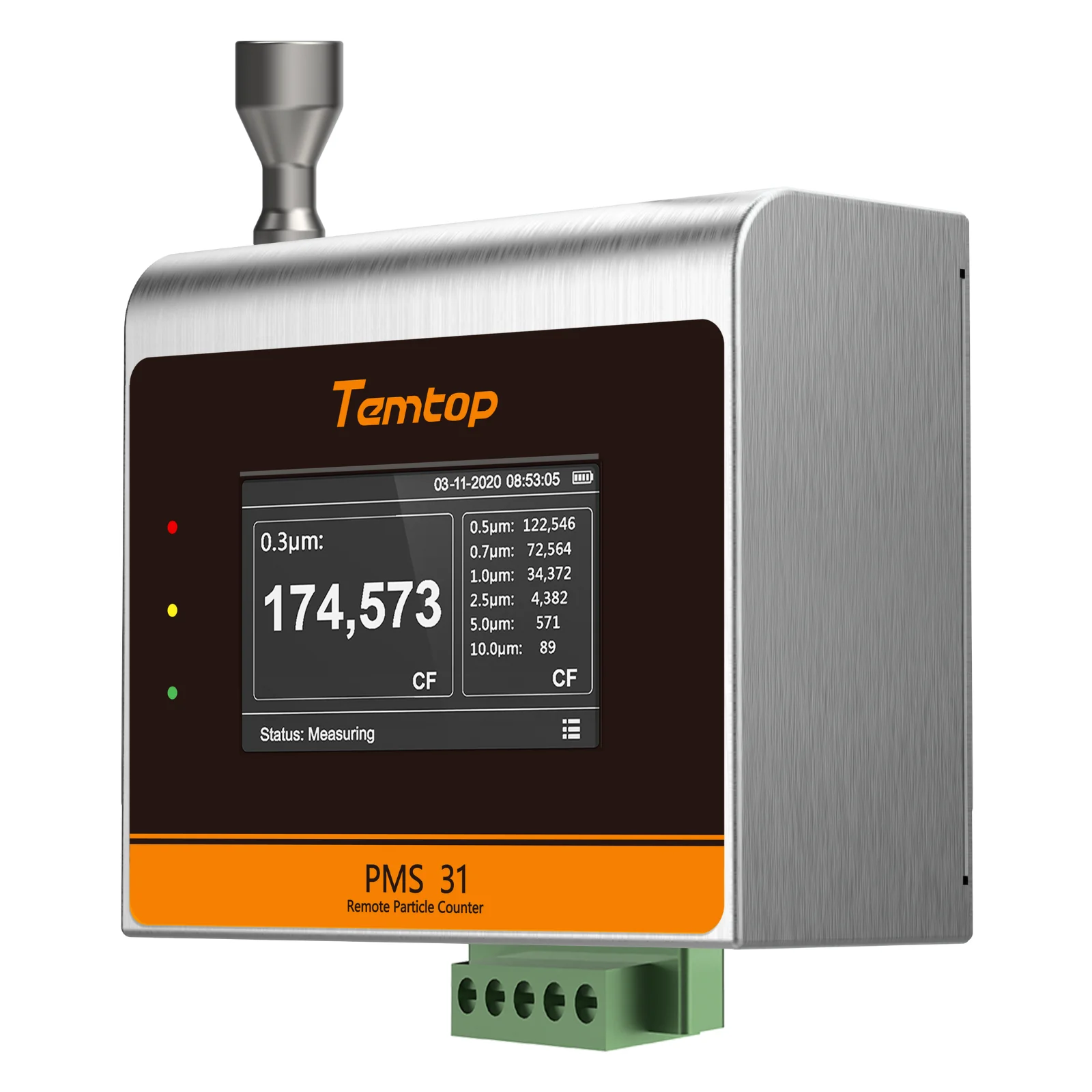

The PMS 31 is a high-precision remote particle counter designed for professional cleanroom and industrial air quality monitoring. Built for reliability and accuracy, it features a 7-channel particle size detection system and a powerful built-in 28.3 L/min vacuum pump for high-volume sampling.

Engineered with industrial-grade components, the PMS 31 delivers stable, long-term operation in demanding environments such as semiconductor, pharmaceutical, and precision manufacturing facilities. Its metal housing ensures durability and strong anti-interference performance.

All instruments are ISO 21501 and JJF 1190-2008 compliant, ensuring measurement traceability and consistency with global standards.

Key Features

  • Seven-channel monitoring: 0.3 μm, 0.5 μm, 0.7 μm, 1.0 μm, 2.5 μm, 5.0 μm, 10 μm

  • High flow rate: 28.3 L/min (±5%) for fast and accurate particle sampling

  • Long-life laser source: 50 mW / 780 nm, up to 20,000 hours of continuous operation

  • Industrial-grade RS485 (Modbus RTU) communication for seamless integration

  • 5-inch TFT display for intuitive data visualization

  • Adjustable sampling time: ≥ 10 seconds

  • Built-in air pump — compact design, easy installation, and maintenance-free

  • Wide operating range: 0–50 °C; DC 24 V supply

Specifications

Parameter PMS 31
Measured Particle Size 0.3 μm, 0.5 μm, 0.7 μm, 1.0 μm, 2.5 μm, 5.0 μm, 10 μm
Counting Efficiency 0.3 μm: 50%; ≥ 0.5 μm: 100%
Resolution 1 P/L
Flow Rate 28.3 L/min (Error ±5%)
Vacuum Source Built-in air pump
Measurement Principle Light scattering method
Laser Source 50 mW / 780 nm long-life laser
Alarm Indicator light
Sampling Time Adjustable (≥10 s)
Communication RS485 (Modbus RTU)
Operating Temperature 0–50 °C
Storage Temperature -20–60 °C
Operating Voltage DC 24 V
Operating Current 3500 mA (average)
Display 5-inch TFT screen
Dimensions 120 × 180 × 80 mm



Why Choose PMS 31

  • Meets ISO 21501 and JJF 1190-2008 standards

  • Designed for continuous operation (24/7 use)

  • Compatible with industrial monitoring networks

  • Reliable, efficient, and built for high-purity applications

$599.70

Original: $1,999.00

-70%
（Pre-order）Temtop PMS 31 High Precision Remote Particle Counter for High-Purity Monitoring—

$1,999.00

$599.70
