PT-800 HVAC Gauge is the upgraded version of PGW-800, which comes with a removable temperature clip.

Features:

• Free App (ioS and Android): Settable high/low pressure alarm, you can receive remote notifications when readings move beyond predetermined value. The data could be saved and exported in Excel and PDF format.
• Multiple Refrigerants and units: Support the saturated temperature-pressure comparison table more of 140 kinds of refrigerants. And units can be alternated between 7 measurement units: psi, inHg, kg/cm², cmHg, bar, kPa, Mpa.
• Automatic Calculation: Superheat/sub cool calculations, recording, reporting, analysising data and more with Elitech Pressure Gauge App and connected by wireless technology,up to 1187' in ideal conditions (no obstructions).
• Waterproof: The pressure gauge is made by ABS and PPT and the waterproof level is IP65.
• Wide application: This digital hvac gauges electronic refrigerant group instrument, measuring temperature and pressure in real-time, is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners,fridge and cold storage. 24/7 US Technician Support via Email and Phone.

Its advantages over other refrigeration pressure gaugues shows as below：

Switchable Units

• Temperature Unit: ℃ / ℉
• Pressure Unit: psi, inHg, kg/cm², cmHg, bar, kPa, Mpa

Free App (iOS and Android)

• Real-time display of current pressure value and temperature
• Auto calculation of the degree of super-heat and sub-cool
• Settable high/low pressure alarm with App notification
• Data report and graph in Excel and PDF formats.

140 Refrigerant Types

• It supports more than 140 refrigerant types, which includes but is not limited to R410A, R134A, R22,R12 etc.
• Built-in P/T Chart in App is easy for you to select targeted refrigerant gas.

Parameters:

• Pressure measuring range: -14.5-800psi
• Resolution: 0.5psi
• Accuracy: ±0.5%FS
• Maximum overload pressure: 750psi
• Operating temperature:-17.8℃-60℃(0℉-140℉)
• Offline records: 7000 points

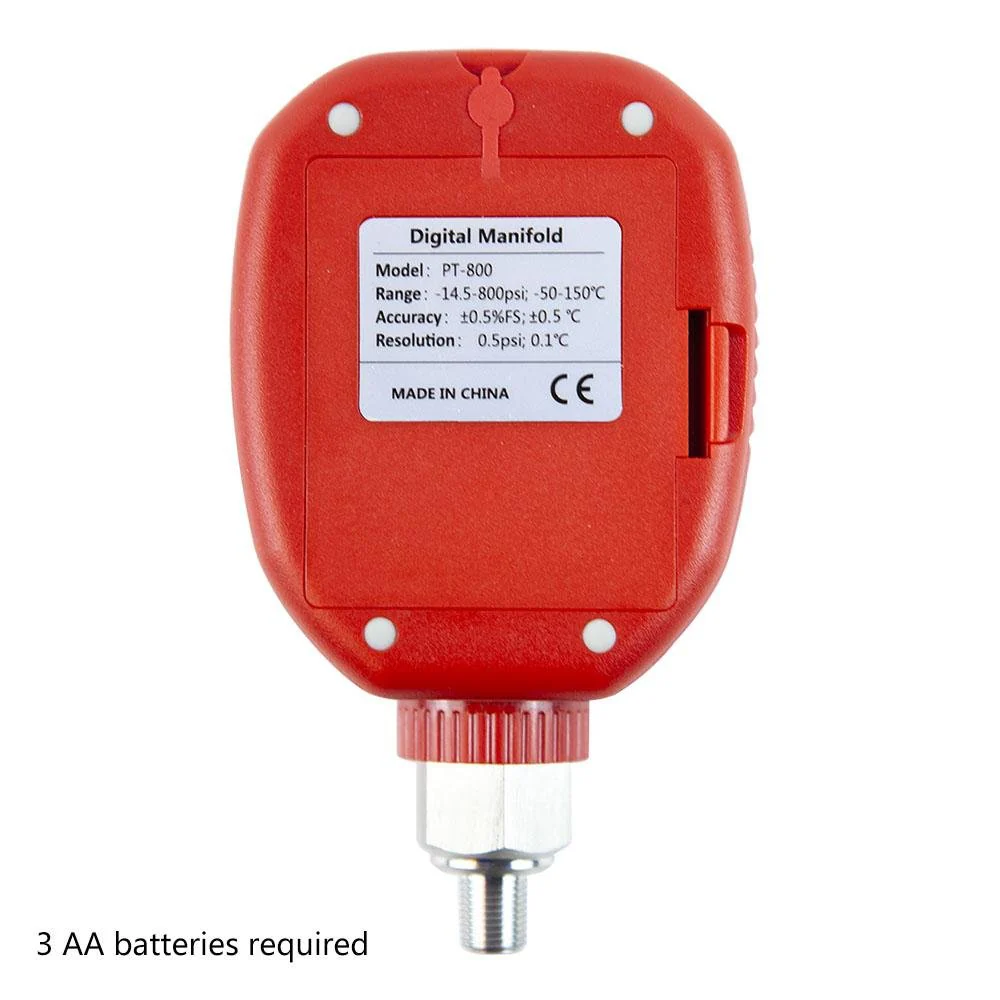

• Power: 3*AA alkaline batteries
• Battery life: 600 hours
• Fitting: 1/8’’ male NPT
• Wireless range: up to 100ft(30m)
• Dimension: 5*2.9*1.5 in. (127mmx74mmx37mm)

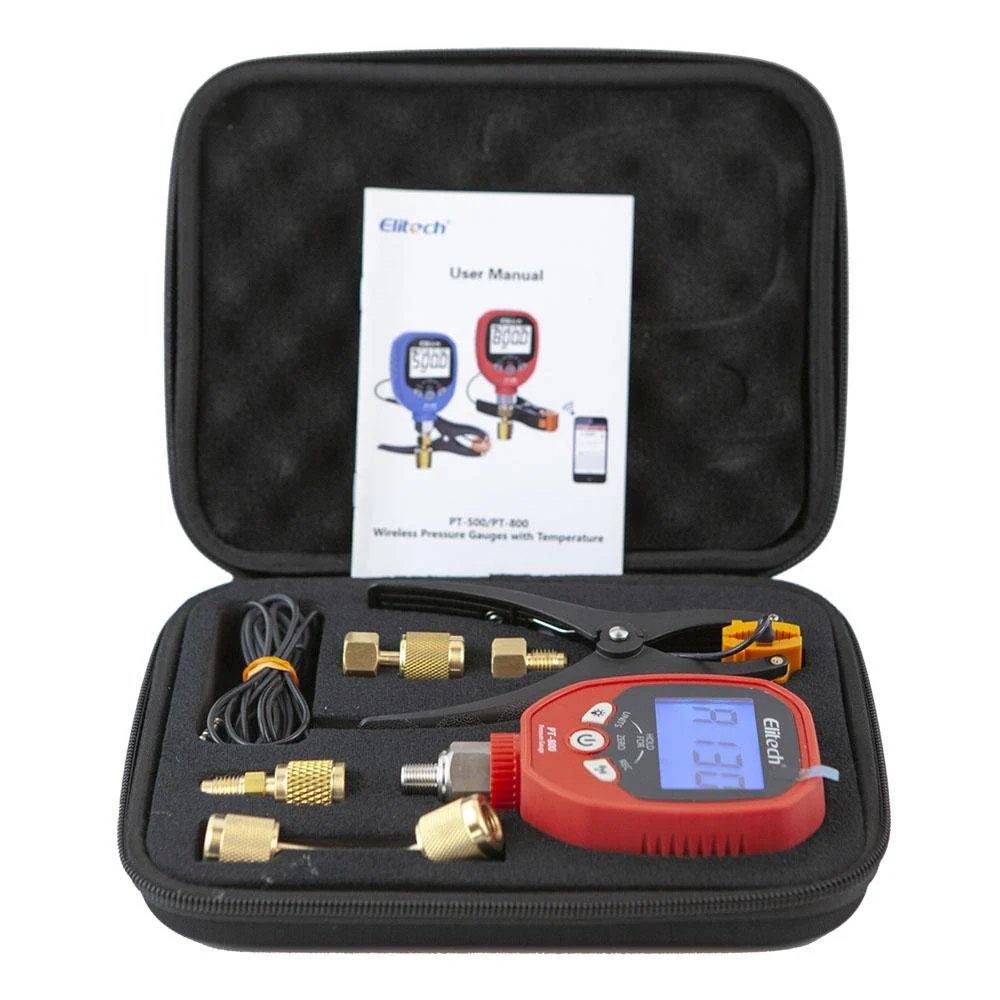

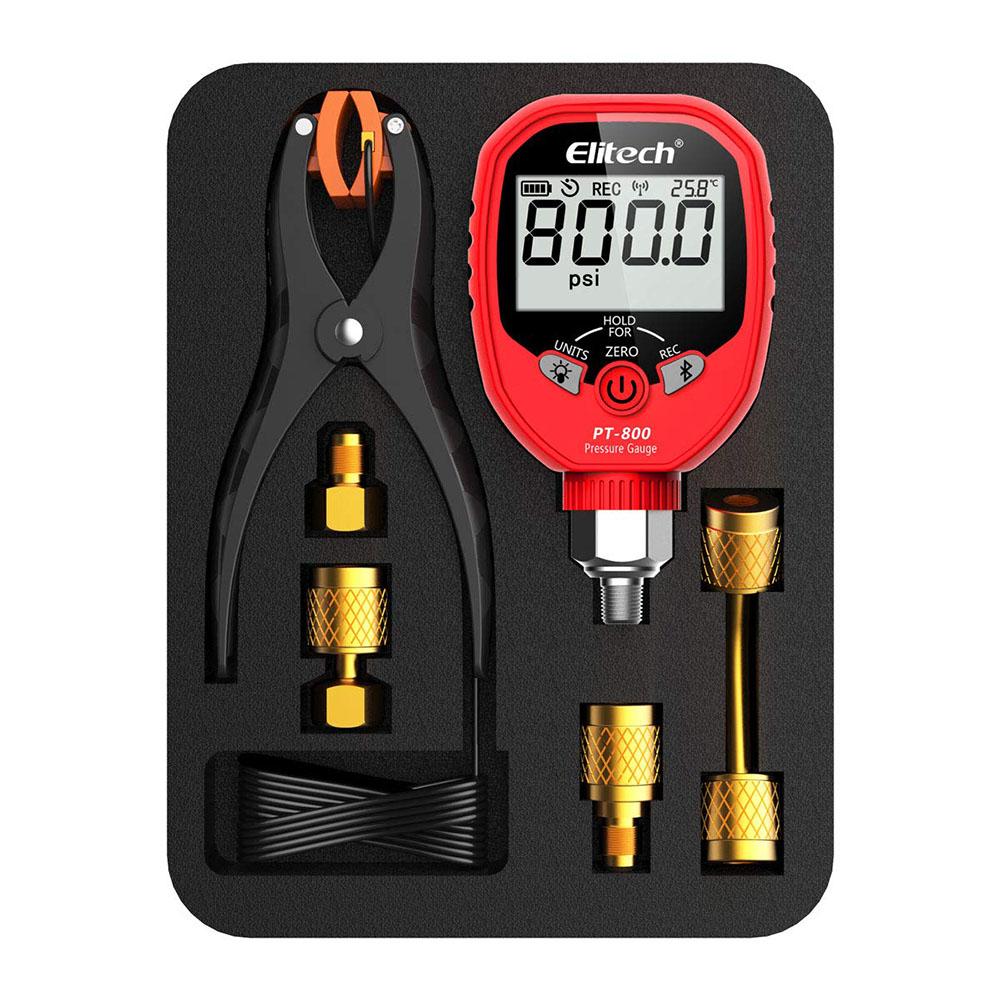

Package Includes:

• 1*PT-800 Pressure Gauge
• 1*Temperature Clip
• 3*AA Alkaline Batteries
• 1* User Manual

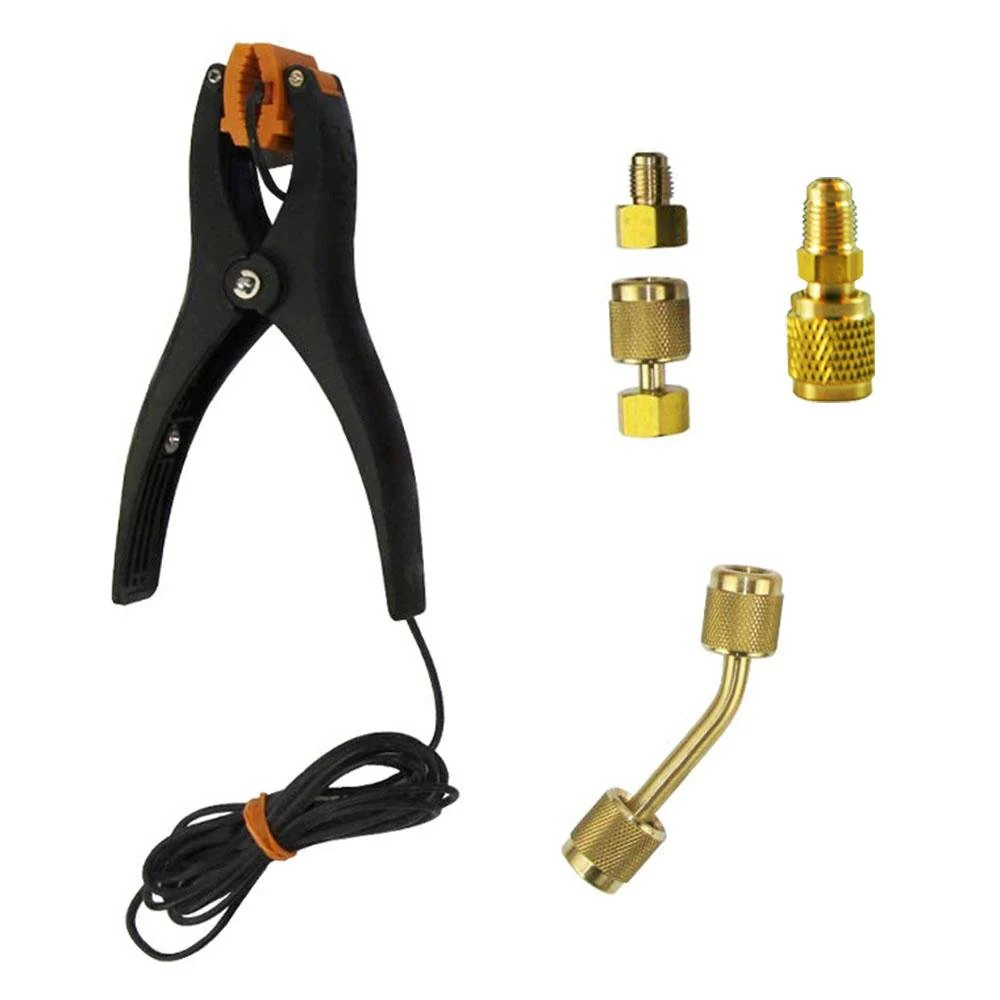

• 1*1/4’’ Male Adapter
• 1*1/4’’ Female Adapter
• 1* Bent Adapter
• 1*Zipbag

140 Refrigerant Profiles:

• R11,R12,R13,R14,R21,R22,R23,R32,R40,R41,
• R50,R113,R114,R115,R116,R123,R124,R125,R134a,
• R141B,R142B,R143A,R152A,R161,R170,R218,R227EA,
• R236EA,R236FA,R245FA,R290,R401A,R401B,R401C,R402A,
• R402B,R403A,R403B,R404A,R406A,R407A,R407B,R407C,R407D,
• R407E,R407F,R408A,R409A,R409B,R410A,R410B,R412A,R413A,R414A,
• R414B,R415B,R416A,R417A,R417B,R417C,R419A,R419B,R420A,R421A,
• R421B,R422A,R422B,R422C,R422D,R422E,R423A,R424A,R425A,R426A,R427A,
• R428A,R429A,R430A,R431A,R432A,R433A,R433B,R433C,R434A,R435A,R436A,
• R436B,R437A,R438A,R439A,R440A,R441A,R442A,R443A,R444A,R444B,R445A,
• R446A,R447A,R448A,R449A,R449B,R450A,R451A,R451B,R452A,R452B,R452C,
• R453A,R454A,R454B,R454C,R455A,R456A,R457A,R458A,R500,R502,R503,R504,
• R507A,R508A,R508B,R509A,R510A,R512A,R600,R600a,R601,R601a,R717,R718,
• R720,R728,R732,R740,R744,R1233ZD,R1234YF,R1234ZE
