Elitech PG-30Pro Blue Digital AC Pressure Gauge -14.5~500 PSI

Product image 1
1 / 8

Elitech PG-30Pro Blue Digital AC Pressure Gauge -14.5~500 PSI

Elitech PG-30Pro Blue Refrigeration HVAC Digital Pressure Gauge for 87+ Refrigerants with Backlight 0-500 PSI 1/8 NPT

Key Feature:

  • Stable and Reliable Sensor: temperature-compensated pressure sensor, temperature drift not exceeding ±0.04%FS/℃

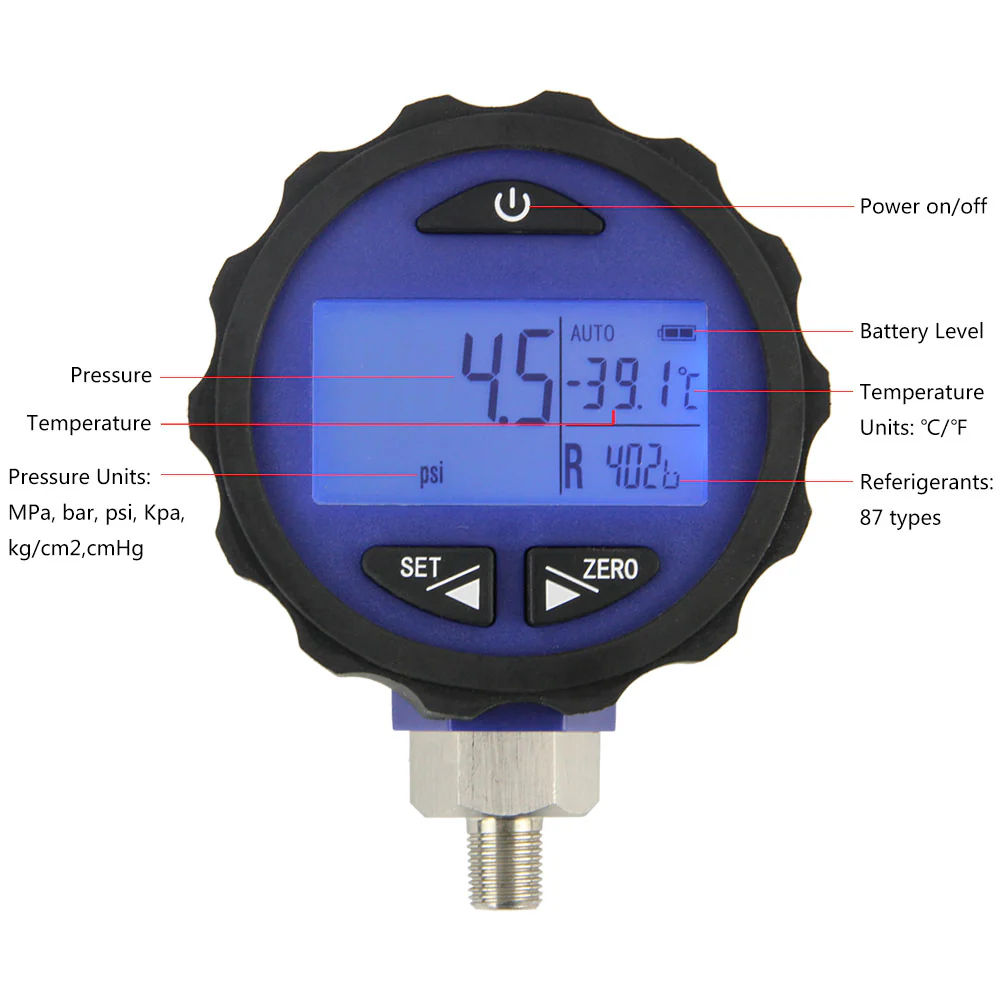

  • LCD Screen & Blue Backlight Display: Partition display for different measurements, direct readings for all measurements.
  • Various Refrigerants Options: Built-in 87 types of normal refrigerants PT comparison table for your convenience.
  • Zero Function: If a deviation occurs at zero points, use ZERO button to zero out and correct the system.
  • Two overload warning indications: The screen displays ALARM or if the overload is too high, the ALARM & backlight will flash simultaneously.
  • Service 1-year warranty. 30 days free & easy return
PG-30Pro is a digital pressure gauge that measures system pressure in real time. It features a big artistic screen and batteries with 1-year service life. The gauge has a backlight, auto off, low battery indication, overpressure alarm, and other functions. It is designed for use in a piping system, refrigerated system and other applications.

Functions:

  1. Stable and Reliable Sensor: temperature-compensated pressure sensor, temperature drift not exceeding ±0.04%FS/℃
  2. LCD Screen & Blue Backlight Display: Partition display for different measurements, direct readings for all measurements.
  3. Various Refrigerants Options: Built-in 87 types of normal refrigerants PT comparison table for your convenience
  4. Zero Function: If a deviation occurs at zero point, use ZERO button to zero out and correct the system.
  5. Two overload warning indications: The screen displays ALARM or if the overload is too high, the ALARM & backlight will flash simultaneously.

Specifications:

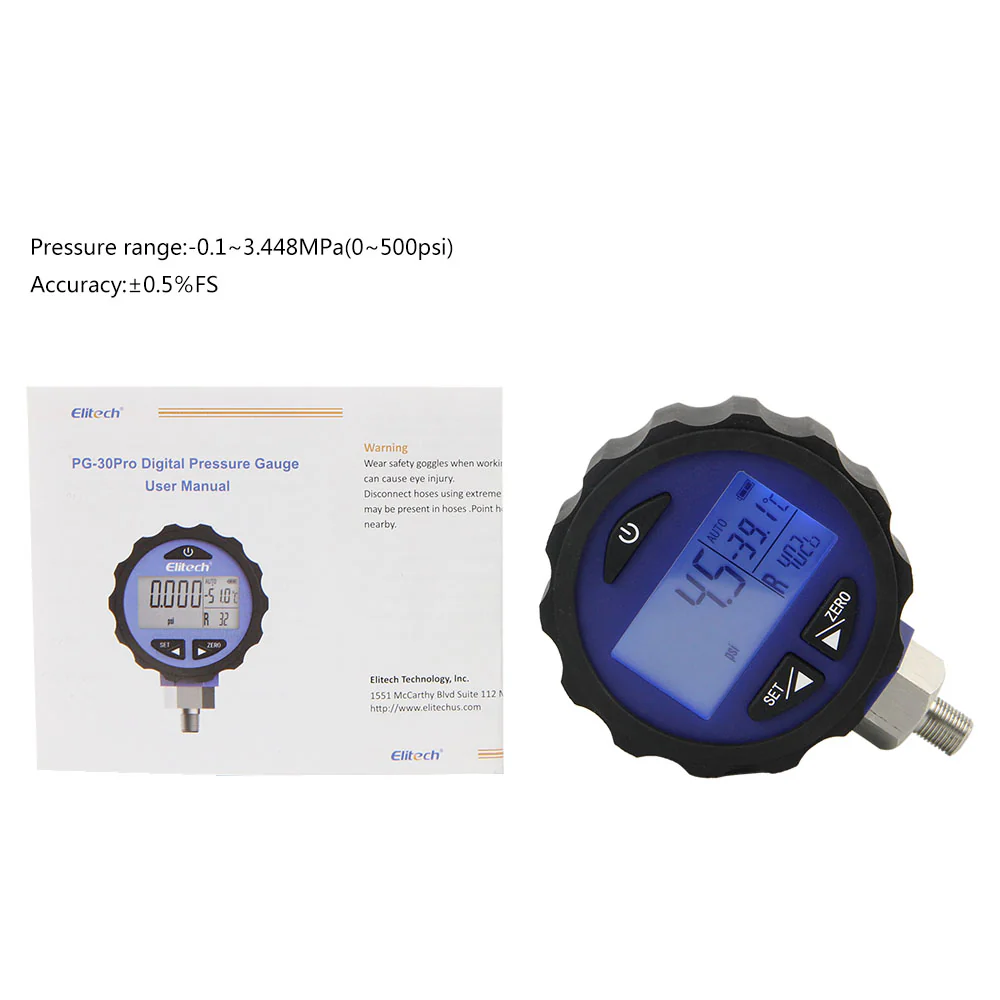

1. Pressure range: Red gauge: -0.100 ~ 5.515MPa(-14.5-800 psi)
                              Blue gauge: -0.100 ~ 3.448MPa(-14.5-500psi)
2. Resolution: 0.001MPa, 0.5psi
3. Accuracy: ±0.5%FS
4. Sampling period: 1s
5. Temperature unit: ℃/F
6. Backlight time: The backlight will be off after 3s, 4s, 5s, 10s or 15s asset in case of no operation.

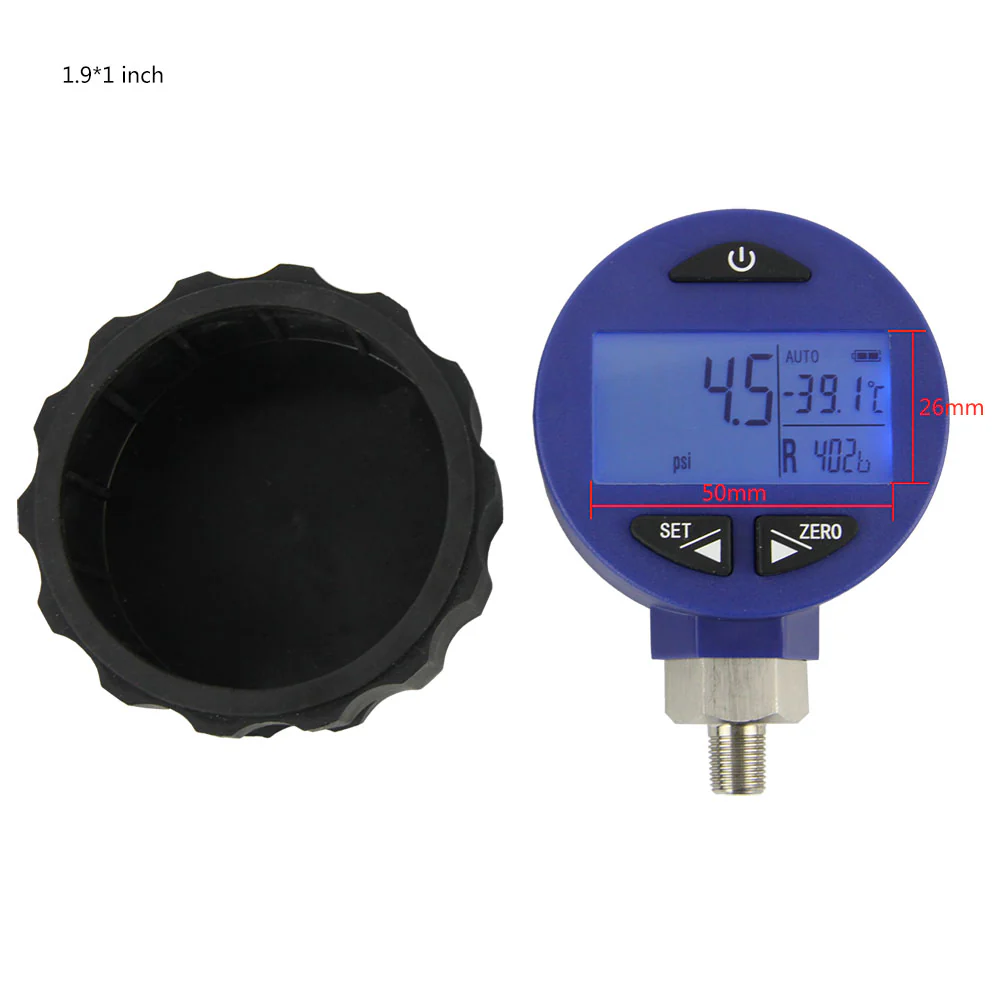

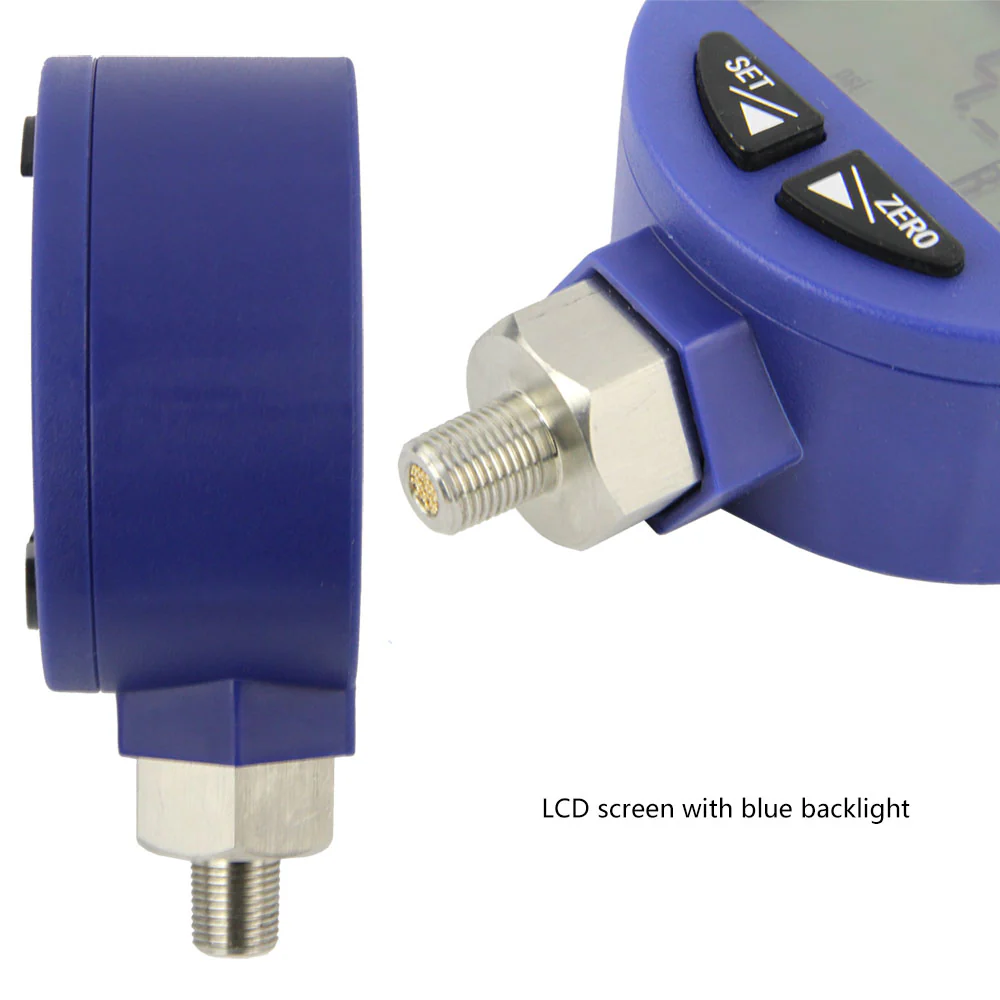

7. The LCD screen with blue backlight, 50 x 26 mm
8. Measurement units: MPa, bar, psi, KPa, kg/cm 2, cmHg
9. Auto-off: If this function enabled the gauge will be off automatically after 10 (or 20, 30, 40 )minutes per your settings. You may also disable this function by setting it as OFF, i. e the gauge will be on all the time.
10. Parameter settings: Auto off, pressure/temperature unit, backlight time
11. PT table lists the pressure and temperature of 87 types of common refrigerants

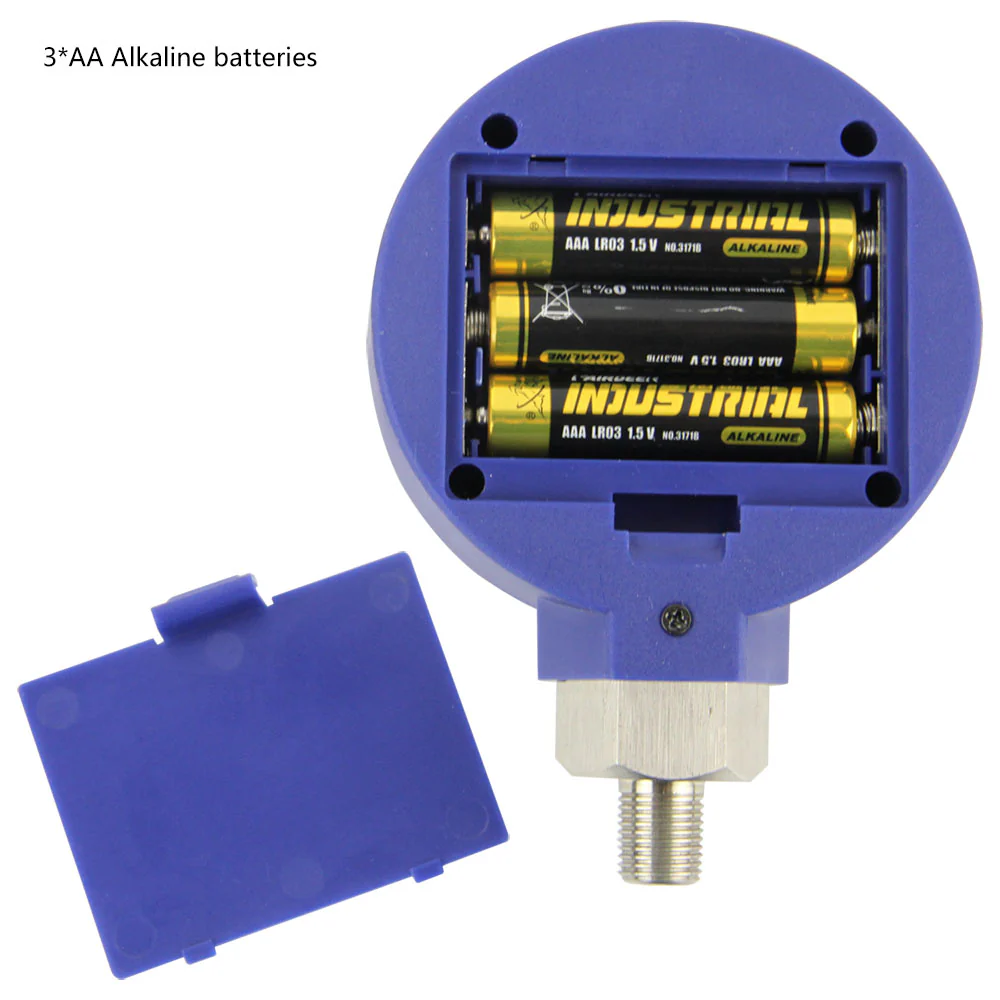

12. Battery: 3 AAA batteries
13. Battery life: Approx. 1 year
14. Low battery indication at low battery level
15. Operating environment: Temperature:-10℃~60℃; Humidity 35% – 85%RH
16. Overpressure alarm: ALARM shows on the top right of the screen if the blue gauge pressure goes above 500psi and the red gauge above 800psi; ALARM shows with backlight flashing if the blue gauge pressure goes above 625psi and the red gauge above 1000psi.

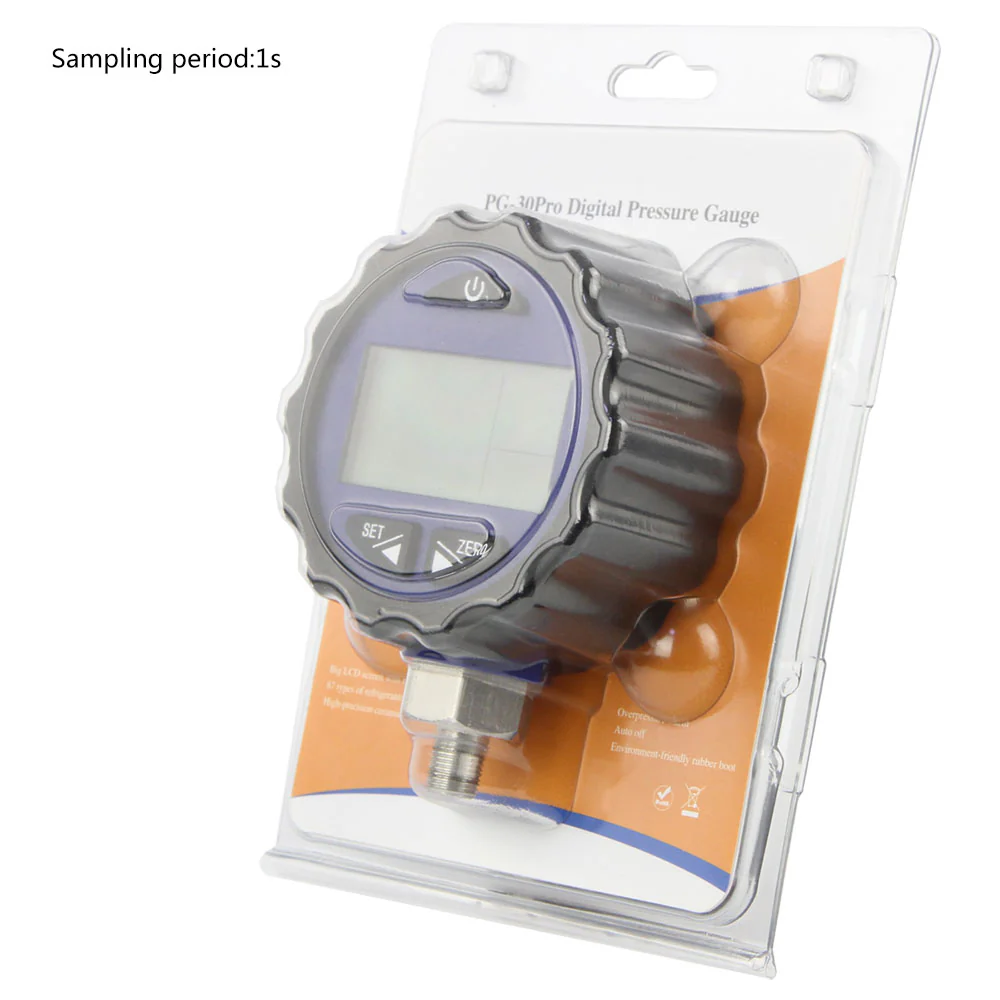

17. Package: Blister pack
18. Fitting: 1/8NPT

Package Includes:

  • 1 X PG-30Pro Pressure Gauge (Blue)
  • 1 X User Manual
  • 3 X AAA Batteries

Compatible Refrigerants:

  • R114, R12, R123, R1234yf, R1234ze, R124, R125,
  • R13, R134a, R14, R141B, R142B, R143A, R152A,
  • R161, 170, R21, R218, R22, R23, R290, R32, R290,
  • R32, R401A, R401B, R401C, R402A, R409B, R41,
  • R410A, R410B, R412A, R413A, R414A, R414B, R415B,
  • R416A, R417A, R419A, R420A, R421A, R421B, R422A,
  • R422B, R422C, R422D, R423A, R427A, R437A, R441A,
  • R442A, R443A, R444A, R449A, R449B, R450A, R452A,
  • R455A, R50, R500, R502, R503, R504, R507, 508A,R508B,
  • R509A, R513A, R600, R600a, R601, R601a, R740, R744

User Manual:  User Manual Download

Comparison Chart:

Elitech PG-30Pro Blue Refrigeration HVAC Digital Pressure Gauge for 87+ Refrigerants with Backlight 0-500 PSI 1/8 NPT



Customer questions & answers:

Question: Will it display the units in microns?

Answer: Measurement Units: MPa,kPa,bar,psi,kg/cm2,cmHg

Question:What are the dimensions of these gauges?

Answer:Length*Wideth*Height: 3.14'*1.57'*4'.

Question: Which 87 refrigerants are pt’s built in.?

Answer: R114 R152A R402B R409B R420A R443A R504

R12 R161 R403A R41 R421A R444A R507A

R123 R170 R403B R410A R421B R448A R508A

Question: What’s the pressure range for the vacuum gauge? As in max pressure?

Answer:The range is :0.100 ~ 3.448MPa(0-500 psi)
