Elitech LD-100+ is a portable refrigerant leak detector using the heated diode gas sensor and precise control circuits, which enable the device to detect all halogen refrigerants. High sensitivity, fast response, stable performance and multiple functions make your job easier and more convenient.
This is achieved automatic and manual mode suitable for locating leaks in various complex environments.
In addition to the supreme performance and functional advantages, it offers a new suction structure design that increases the sensitivity while having the anti-water absorption function at the same time.

Feature

• 【Detect Multiple Refrigerants】Triggers on R11/R22/R404a/R410a/R600a/R1234yf and all halogenated refrigerants including CFCs, HFCs, HCFCs, HCs, HFOs, and blends.
• 【2 Detection Mode】Automatic and manual mode suitable for locating leaks in various complex environments.
• 【Fast Response】 Warms up in the 30s and responds in 3s; 3 adjustable sensitivity with maximum sensitivity 0.11oz/yr.

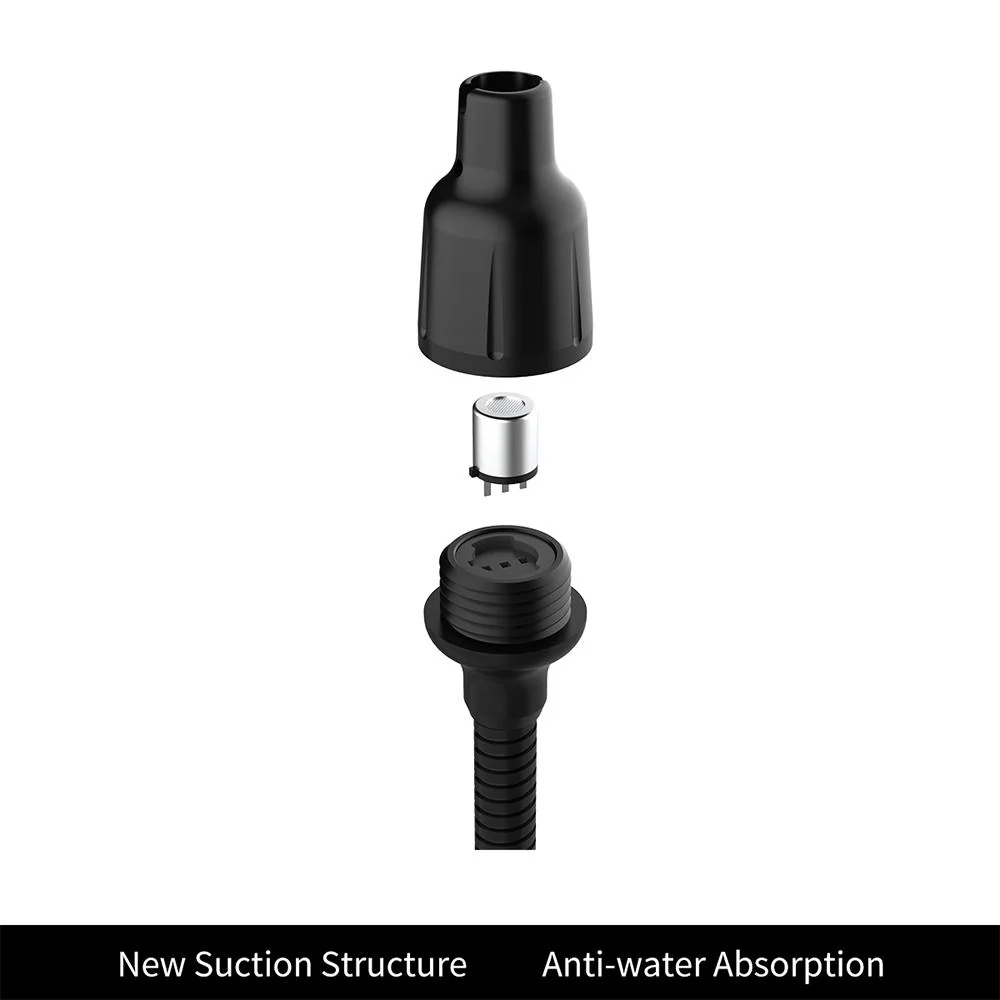

• 【Anti-water Absorption Design】The new pump-suction structure increases the sensitivity while having the anti-water absorption function at the same time
• 【Safe and Reliable】Meets CE and EN14624 industrial standards.

Specification

• Sensor type: Heated diode gas sensor
• Minimum detectable leakage: ≤3 g/year
• Reaction time: ≤3 seconds
• Warm-up time: 30 seconds
• Reset time: ≤10 seconds
• Operating temperature range: 0-50℃
• Operating humidity range: <80%RH(non-condensing)
• Applicable refrigerant: CFCs, HCFCs, HFCs, HCs and HFOs
• Sensor lifetime: ≥1 year
• Reset: Automatic/manual
• Probe length: 420mm(16.5in)
• Battery life: 7 hours

Package includes

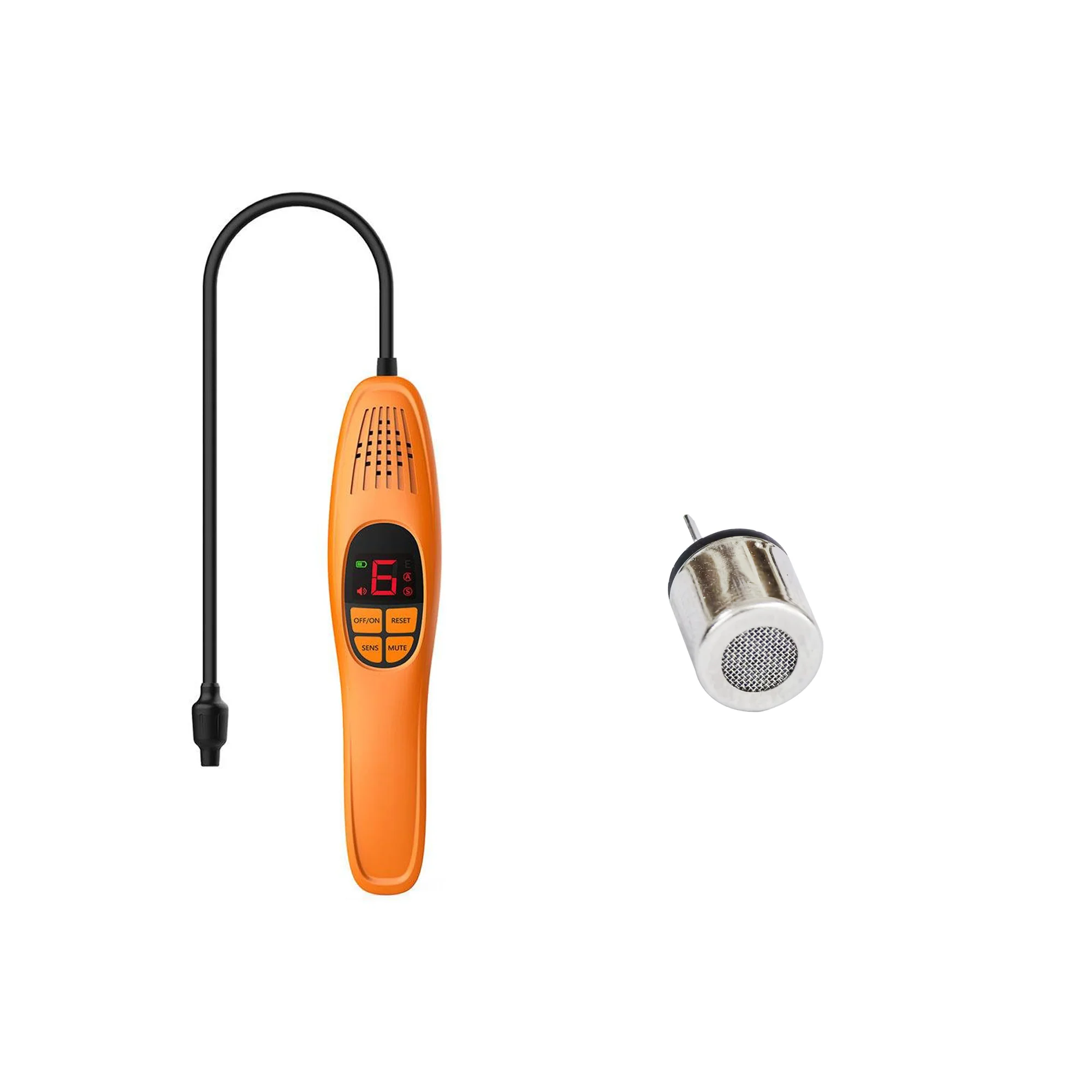

• 1 X LD-100+ leak detector ( excluding sensor)
• 1 X Heated diode gas sensor

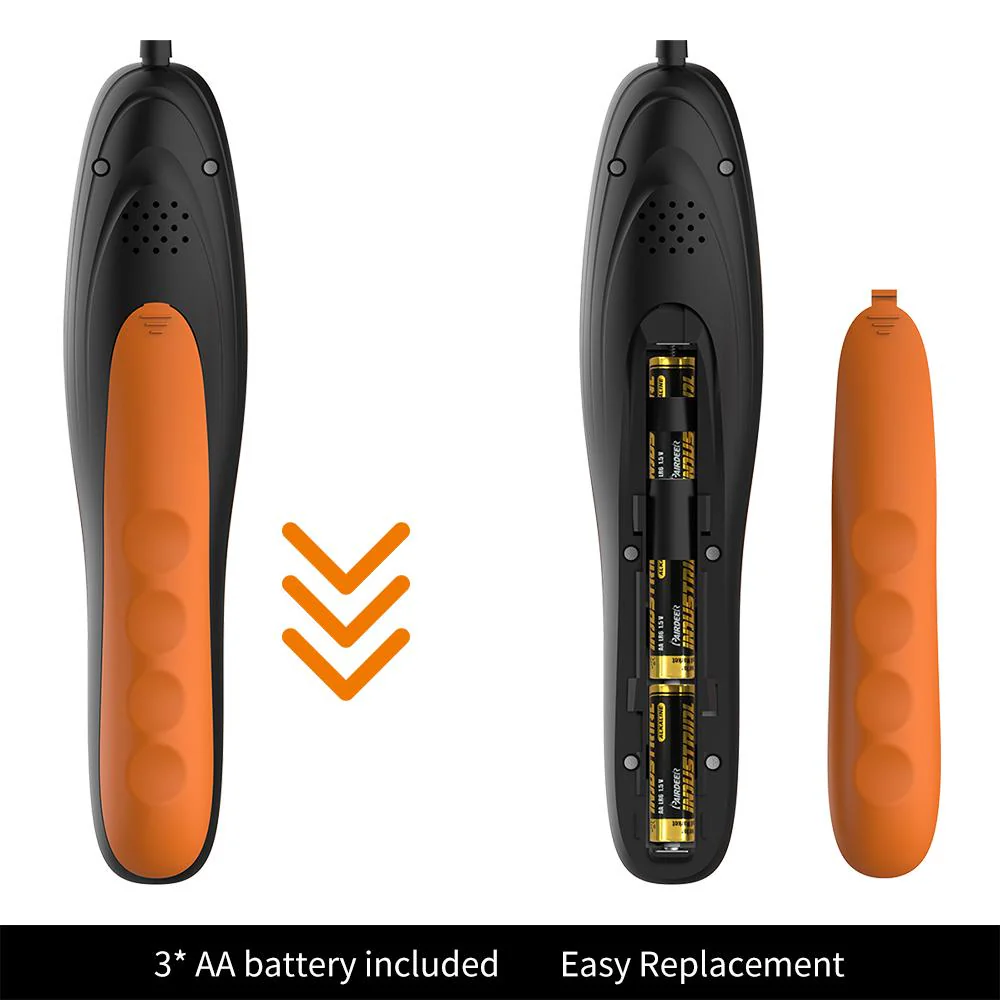

• 3 X AA alkaline battery
• 1 X Packing box
• 1 X Performance report

User Manual: download
